High-Capacity Staining Simplified
Engineered to Flex With Your Needs
IHC, ISH and FISH Automated Staining
High-Capacity
Throughput
Trusted
Antibodies
Intuitive Instrument &
Software Interface
Built for Efficiency
• 42 Slide Positions
• 56 Reagent Capacity
• Easy Slide Loading
• Mix & Match Protocols
• Two Configurations
Rooted in Quality
• Sharp & Well-Defined Staining
• LIS/LIMS Compatible
• Al Checks Slide Position
• Reagent Temp Control
• Greater Reagent Stability
Designed for Simplicity
• Traceability & Reporting
• Low Maintenance
• Automated Cleaning
• Independent Slide Positions
• Multiplex Protocols

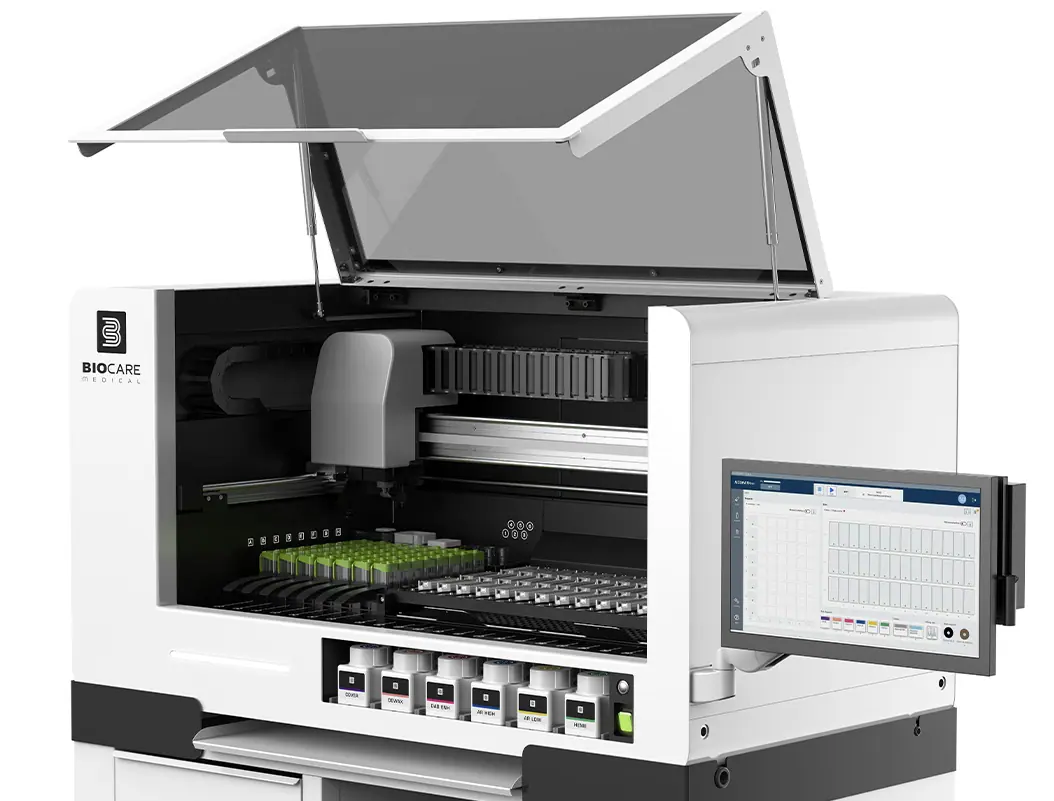

NeoPATH Pro sets a new standard in automated advanced staining for IHC, ISH, and FISH. Designed to meet your laboratory’s current staining needs while adapting to future demands, this advanced staining platform delivers high-capacity throughput, optimized reagents, and intuitive automation. Innovative features such as independent slide positions, integrated slide scanning, and Al assisted error prevention streamline workflows and enhance diagnostic confidence.
For In Vitro Diagnostic Use
NeoPATH Pro Specifications
Applications |
IHC, ISH, FISH |
Slide Capacity |
42 Slides |
Reagent Rack |
7 Reagent Racks, each consists of 8 Vials (Total 56 vials) |
Bulk Reagents |
6 Bulk Containers (Max volume: 2000 mL each) |
Carboys & Waste separation |
Wash Buffer (25 L), Cleaning Solution (25 L) |
Antigen Retrieval Temperature Range |
25°C to Max 115°C at Sea Level |
Reagent Capacity |
2.5 mL, 15 mL, 50 mL |
Syringe Capacity |
5 mL |
Dispense Volume |
25 uL minimum – 5 mL maximum |
Unit Control |
One Instrument Per Computer |
Instrument Weight |
330.70 lbs (150 kg) |
Instrument Weight (with Dock Accessory) |
573.20 lbs (260 kg) |
Instrument Dimensions |
(Door Closed – W x H x D) 54.33 in x 31.49 in x 29.52 in / 138 cm x 80 cm x 75 cm |
Instrument Dimensions (with Dock Accessory) |
(Door Closed – W x H x D) 55.16 in x 64.25 in x 29.53 in / 140.20 cm x 163.20 cm x 75 cm (Door Open – W x H x D) 55.16 in x 82.70 in x 29.53 in / 140.20 cm x 210 cm x 75 cm (Setup space with PC) W 78.78 in / W 200.20 cm |
Electrical Requirements |
Voltage : 100 – 240 VAC Frequency: 50 – 60 Hz |
UPS Requirements |
120VAC UPS: Power Capacity (VA): 1500 VA – Voltage Required: AC 100/110/120 V |
Noise Rating |
60 dBA at 1.5 Meter Distance |
Reports |
Slide QR Code, Patient Information, Staining Runs |
LIS |
HL7 Server Connection |
Reagent Rack Temperature |
18 – 22°C |
Programmable Delayed Start |
Up to 48 hours |
Operating Conditions |
5 – 32°C |
Operating Process |
Continuous, Random Loading & Unloading |
Antibodies |
Pre-optimized, Ready-to-use antibodies. Open reagent containers available for antibodies |
