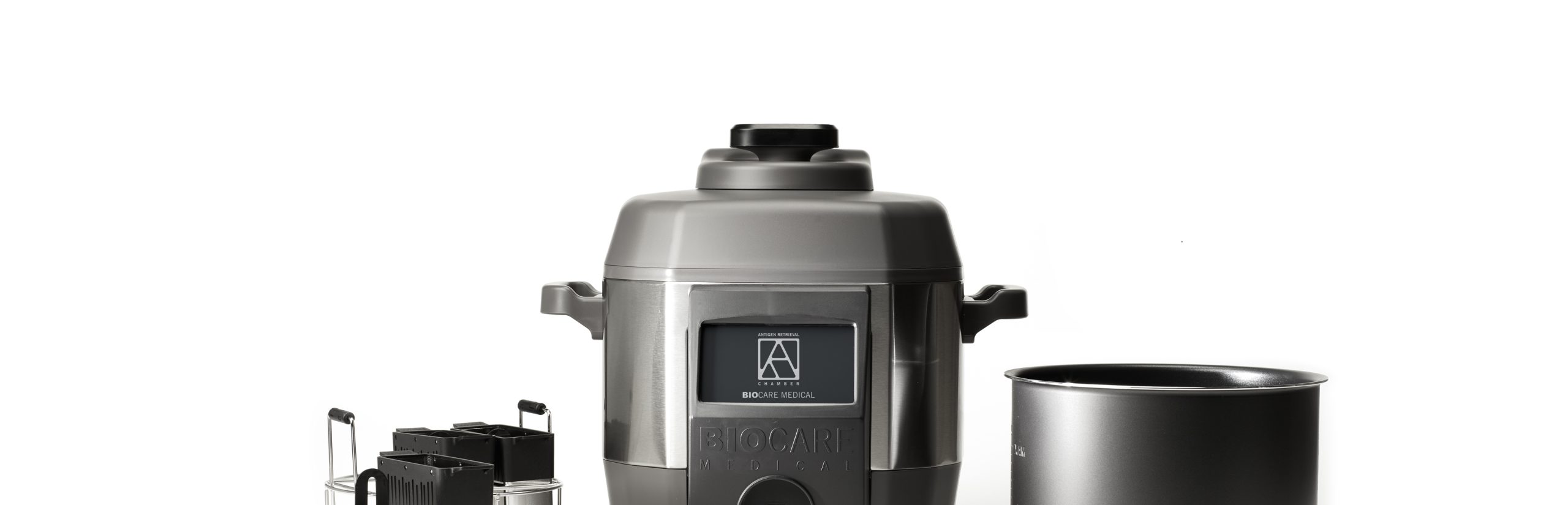

ARC
Antigen Retrieval Chamber
Learn More >
Programmable Pressure System for HIER
Decloaking Chamber™ ARC
Achieve Reproducible IHC and ISH Staining
Pre-Programmed or Custom Protocols
Intuitive Touch Screen
Temperature Range Between 60ºC and 121ºC
Compact Footprint
72 Total Standard Slides

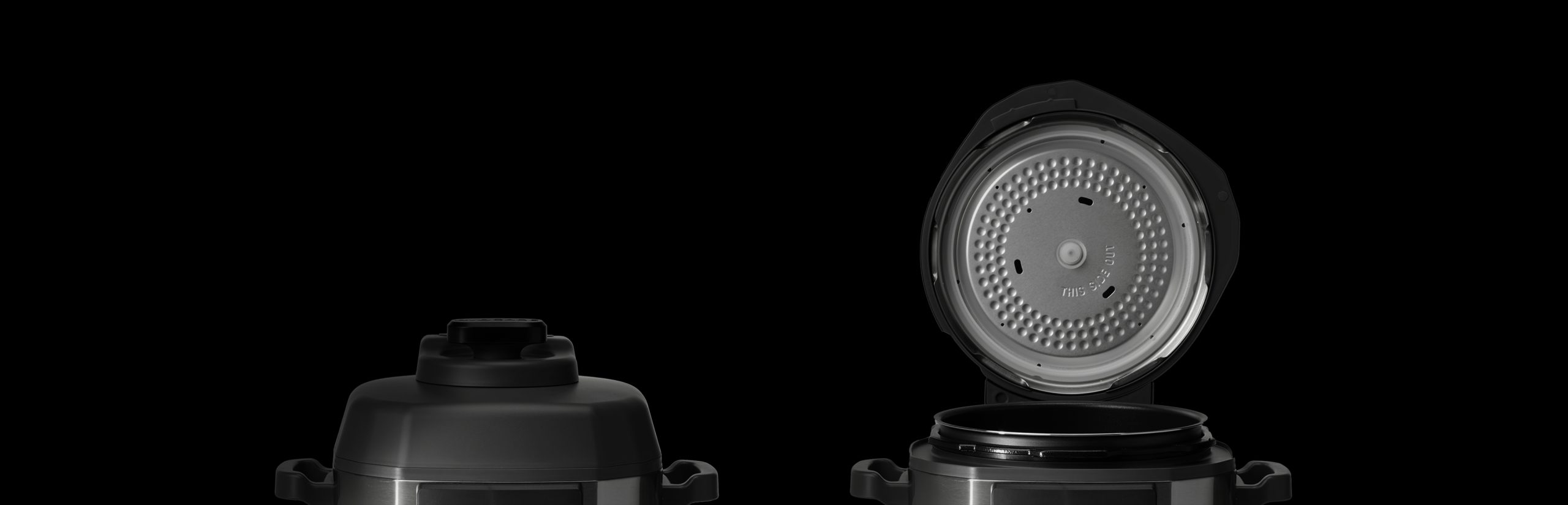

Handles The Pressure.
Designed to optimize and standardize antibody staining procedures, the ARC has been engineered to pass strict laboratory safety and quality control requirements. Temperature, pressure and time can be monitored and recorded to produce consistent staining.
The Antigen Retrieval Chamber (ARC) is for professional laboratory use in conducting heat-induced epitope retrieval (HIER) of formalin-fixed paraffin embedded (FFPE) tissue mounted on microscope slides prior to performing IHC or ISH staining tests.
ARC was developed with the flexibility to choose from 6 pre-programmed protocols or custom protocols with a user-friendly touch screen for ease of use. ARC offers a temperature range between 60ºC and 121ºC with user programmable time and temperature settings. Adjust the temperature in 1ºC intervals and customize the time in seconds, minutes, or hours.
ARC has the capability to process larger tissues by utilizing double wide slide carriers. The double wide slide carriers hold up to 27 double wide slides.
Both standard slide and double wide slide carriers were designed for superior durability to withstand higher temperatures and improve durability over other slide carriers.

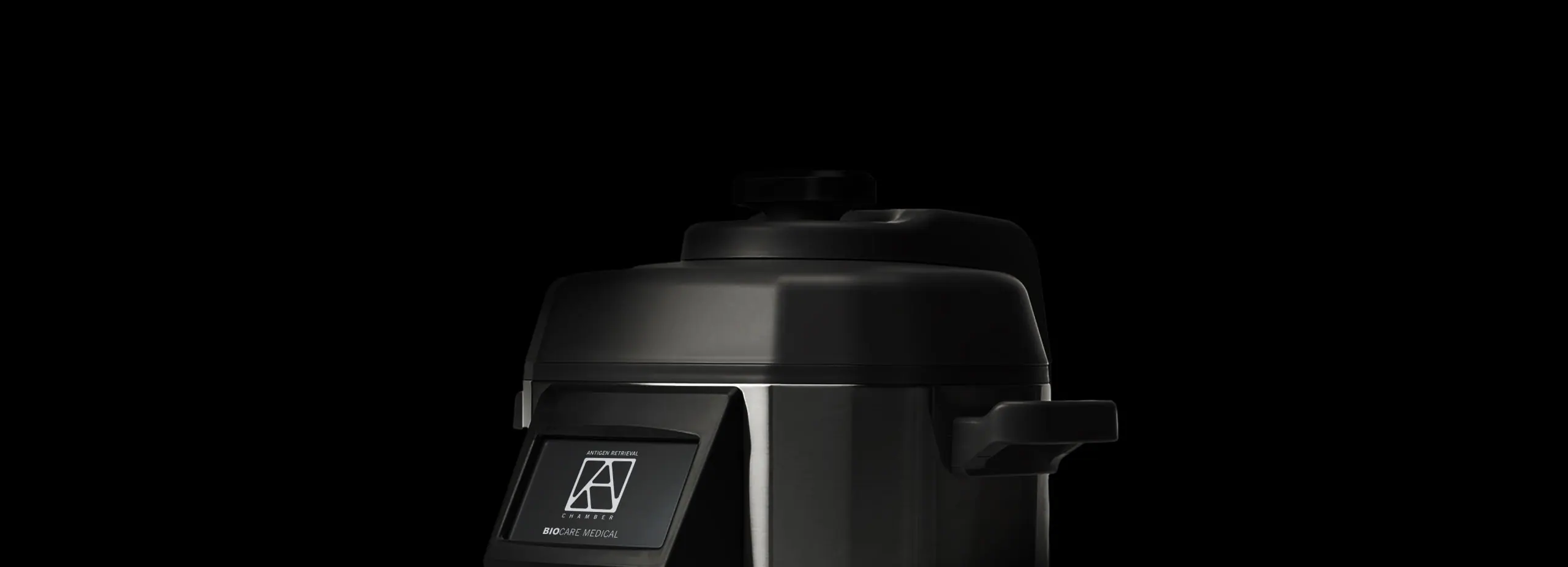

Bring On The Heat.
Arc specifications
|
Instrument Specifications |
|
|
Antigen Retrieval Chamber (ARC) |
DCARC0001 |
|
Power Requirements |
±115VAC ± 10%, 1100W, 60 Hz |
|
Dimensions |
14.2” W x 13.0” L x 13.5” H (361 x 330 x 343 mm) Lid open – 14.2” W x 13.0” L x 21.5” H (361 x 330 x 546 mm) |
|
Weight |
13.2 lbs (6 kg) |
|
Capacity |
72 Total Standard Slides (3 slide canisters) or 27 Total Double Wide Slides (3 slide canisters) |
|
Slide Specifications |
|
|
Standard Slides |
Width: 24.2 – 25.6 mm | Length: 75.0 – 76.5 mm | Thickness: 0.9 – 1.2 mm |
|
Double Wide Slides |
Width: 49.5 – 51.0 mm | Length: 75.0 – 76.5 mm | Thickness: 0.9 – 1.2 mm |
