Automated Double-wide Slide Stainer
Learn More >
Fully Open System
For Use With Double-wide Slides
Simultaneous Multiplex IHC Processing
Semi-automated, Easy to Use Platform
Data Management
Available with ARC Decloaking Chamber
Double Your Results.

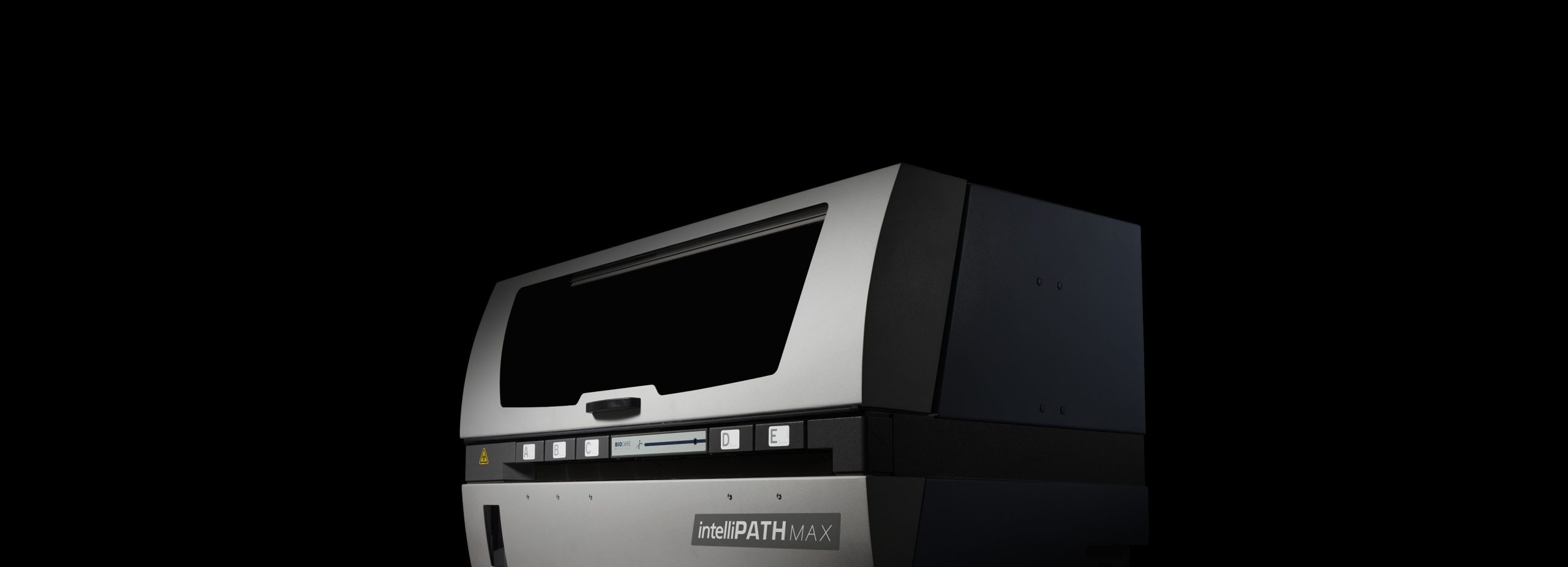

The intelliPATH MAX Automated Slide Stainer is the latest addition to Biocare Medical’s expanding instrument portfolio. The system is designed for processing patient slides in anatomical pathology and histology laboratories. The intelliPATH MAX is intended for processing double-wide slides for larger tissues while delivering reliable and consistent IHC staining in such a manner that closely mimics manual staining methods. This enables easy transfer of established manual staining methods to an automated platform with minimal protocol optimization.
The intelliPATH MAX is a fully open system with continuous random access and prioritized STAT capability, providing maximum flexibility to meet the demands of your laboratory while increasing productivity and improving turnaround time. The system’s software allows for rapid, straightforward set up of protocols and real-time updates during a run. The intelliPATH MAX can process double-wide slides at a maximum capacity of 25 slides (5 slides per slide tray) per run. The intelliPATH MAX is an open platform for clinical and research markets. Biocare antibodies and detection systems are available for added convenience and efficiency.
Hardware Upgrades
Reengineered Syringe Pump
Carboy Sensor Upgrade
Slide Tray Upgrade
Chasis Color Change
Tubing advancements
Software Enhancements
Multi-Language Support
Scalable User Interface
Optimized Scheduler
Improved Workflows
Level Sensor upgrade
MAX imize Your Potential.
Double-wide Slides
Reproducible Results Across The Entire Slide Area
intellipath MAX specifications
|
Slide capacity |
25 Double-wide slides |
|
Independent slide trays |
5 slide trays, 5 slide positions per tray |
|
Slide specifications |
Width: 49.5 – 51.0 mm, Length: 76.5 mm (maximum), Depth: 1.3 mm (maximum) |
|
Reagent vial capacity |
48 (20 mL vials) |
|
Cold spot capacity |
2 (6 mL vials) |
|
Cold spot temperature range |
2-8°C / 35-46°F |
|
Mixing vial capacity |
18 (6 mL vials) |
|
Reagent dispensing range |
Delivers 600uL-1200uL |
|
Multi-dispensing range |
20 mL |
|
Buffer inlets |
3 |
|
Waste separation |
Separated hazardous and non-hazardous |
|
LIS |
Compatible with LIS2-A2 (ASTM) and HL7 messaging standards |
|
Computer arm |
Optional, attaches to the left or right side of the instrument |
|
Electrical requirements |
900W; 115V/230V; 50/60 Hz |
|
Instrument Dimensions (W x H x D) |
40” X 24” X 25” / 102 cm X 61 cm X 64 cm (excludes optional computer arm) |
|
Instrument Weight |
145 lbs / 66 kg (excl. optional computer arm) |
