Fully Open Automated Slide Staining Instrument
Learn More >
High Throughput Capacity
Continuous Random Access with STAT Capability
Simultaneous Multiplex IHC Processing
Fully Open System
Data Management
Available with ARC Decloaking Chamber
Results You Can Trus+.

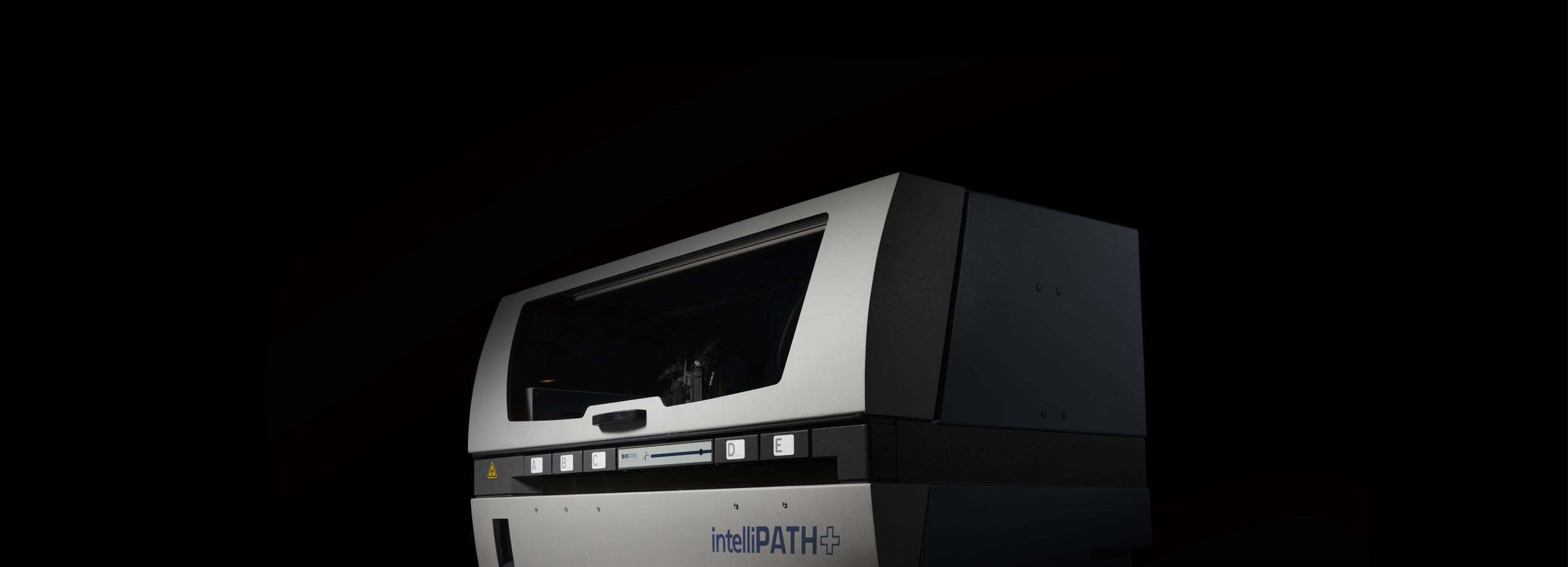

The intelliPATH+ is the latest automated slide stainer from Biocare Medical for processing patient slides in anatomical pathology and histology laboratories. The intelliPATH+ is designed to perform reliable and consistent IHC staining, enabling easy transfer of established manual staining methods to an automated platform with minimal protocol optimization.
The intelliPATH+ is a fully open system with continuous random access and prioritized STAT capability, delivering maximum flexibility to meet the demands of the laboratory while increasing productivity and improving turnaround time. The system’s software allows for rapid, straightforward set up of protocols and real-time updates during a run. The intelliPATH+ can process 50 slides (10 slides per slide tray) per run. This instrument is an open platform intended for both Clinical and Research Markets. Biocare antibodies and detection systems are available for added convenience and efficiency.
The intelliPATH+ is for In Vitro Diagnostic (IVD) use.
Hardware Upgrades
Reengineered Syringe Pump
Carboy Sensor Upgrade
Slide Tray Upgrade
Chasis Color Change
Tubing advancements
Software Enhancements
Multi-Language Support
Scalable User Interface
Optimized Scheduler
Improved Workflows
Level Sensor upgrade
intellipath+ specifications
|
Slide capacity |
50 |
|
Independent slide trays |
5 slide trays, 10 slide positions per tray |
|
Slide specifications |
Width: 24.2 – 25.6 mm Length: 76.5 mm (maximum) Thickness: 1.3 mm (maximum) |
|
Reagent vial capacity |
48 (20 mL vials) |
|
Cold spot capacity |
2 (6 mL vials) |
|
Cold spot temperature range |
2-8°C / 35-46°F |
|
Mixing vial capacity |
18 (6 mL vials) |
|
Reagent dispensing range |
Delivers 100 μL to 600 μL |
|
Multi-dispensing range |
20 mL |
|
Buffer inlets |
3 |
|
Waste separation |
Separated hazardous and non-hazardous |
|
LIS |
Compatible with LIS2-A2 (ASTM) and HL7 messaging standards |
|
Electrical requirements |
900W; 115V/230V; 50/60 Hz |
|
Instrument Dimensions (W x H x D) |
40” X 24” X 27” / 102 cm X 61 cm X 69 cm (excludes optional computer arm) |
|
Computer arm |
Optional, attaches to the left or right side of the instrument (P/N: IPP10108) |
|
Instrument Weight |
145 lbs / 66 kg (excl. optional computer arm) |
